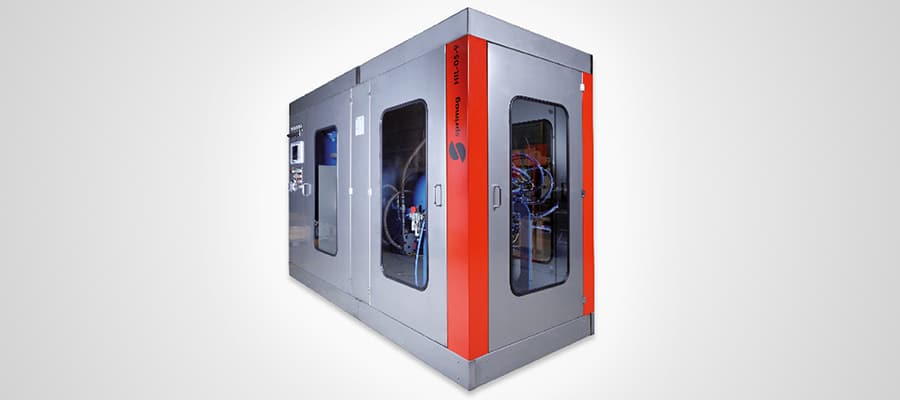

HIL-05: Internal coating machine with lancing spray guns

The new internal coating machine HIL-05 was designed for the internal coating of beverage cans and bottles with a large length-to-diameter ratio. This machine, which was specifically designed for the requirements of the beverage can industry, is extremely robust, provides high availability, and fulfills the highest standards of hygiene and ease of cleaning due to the machine housing that is mainly manufactured out of stainless steel.

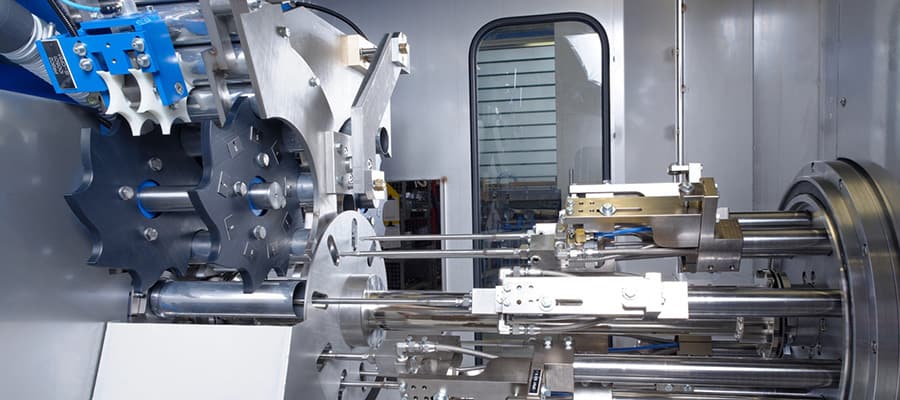

  • Rotary drive with 9 spray guns
  • Excellent coating quality
  • Provides high availability of machinery ­equipment
  • High machine output
  • Meets the high requirements of the beverage industry in reference to robustness
  • Fulfills the highest hygienic standards
  • Perfectly designed for bottle cans and slim ­beverage cans
Contact us


  • Product range: beverage cans and bottles
  • Product diameter: max. 66 mm
  • Trimmed can height: max. 260 mm
  • Individual machine speed: 300 cpm (up to 800 in short stroke operation)
  • Spray guns/Spray process: 9/1 time


  • Optionally equipped with airless or air pressure fed spray guns


    More about coating beverage bottles



    Internal Coating of Beverage Bottles

    internal coating of aluminum bottles

    "From the classic beverage can to the thin-walled aluminum bottle", different production processes, extract from the SPRIMAGAZINE 01/2017
