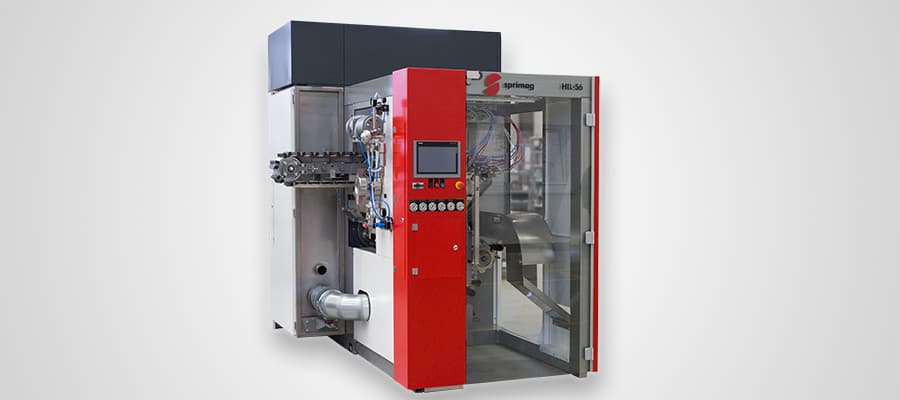

HIL-56: From the Sprimag eCompact Series

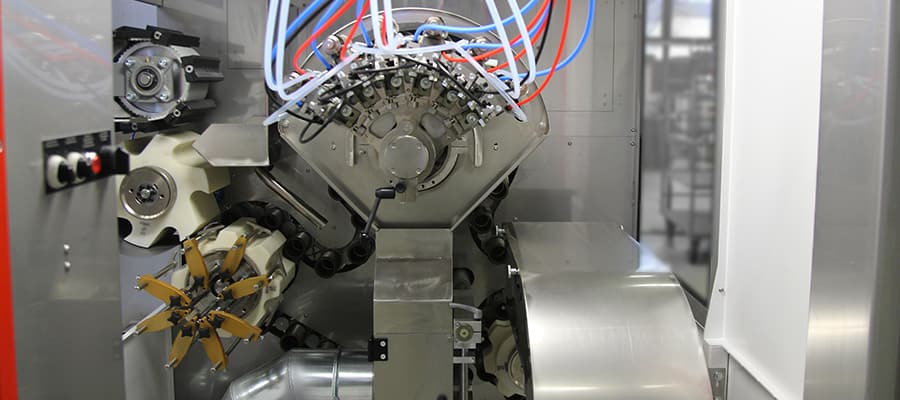

The HIL-56 aerosol can internal coating machine impresses with its cost-, space- and energy-optimized ­coating concept. The internal coating machine, which is based on standard assemblies, is enhanced by an energy-­optimized internal coating drier.

  • Compact machine design
  • Machinery speed up to 180 cans per minute
  • Triple coating on 6 spray guns
  • Separate servo drives for stroke and transport ­movement
  • Proven quick-change system for size parts, ­compatible with HIL-64, HIL-70, HIL-94
  • Automatic part ejection during production process
  • Machine dimensions adjusted to integrate in older production lines
  • Manufactured in accordance with the ATEX regulations
Contact us

OPTIONS

  • Additional lacquer supply
  • Cleaning device for spray gun extensions
  • Energy optimizing system and vacuum control
  • Second spray arm with full spraying equipment assembly
  • Can bottom suction device
  • RFID-access verification system to organize access authorizations
  • Division of spray gun groups into separately ­controlled circuits
  • Flexible infeed concepts



TECHNICAL DATA

  • Product range: Aerosol cans and beverage bottles
  • Product diameter: Dmin 20 mm, Dmax 66 mm
  • Trimmed can height: Lmin 70 mm, Lmax 270 mm
  • Production speed: up to 180 cpm
  • Spray guns/Spray process: 6/3 times or 4/2 times

INTERNAL DRIER FOR CANS DIT

  • 1-, 2- or 3-row transport chain with baskets
  • Reduced wearout of the transport chain and the chain wheels by cardan-based drive system
  • Chain tensioner with weight, electronically monitored
  • Easy accessibility to the drier interior due to large doors
  • Quadruple door lock
  • Isolated doors with special door hinges for ­synchronized door closing
  • Large outer doors with smooth surface on the oven‘s front and rear sides
  • Quick and easy removal and reassembly of the shafts and chain wheels in case of service
